Chinese Satellite Profiles Earth’s RF Spectrum as Seen from Lunar Orbit


The Chinese DSLWP-B (LO-94) satellite that had been in lunar orbit provided a profile of Earth’s HF spectrum as seen from the moon. The microsatellite subsequently was crashed into the moon’s surface after having completed its mission. DSLWP stands for “Discovering the Sky at Longest Wavelengths Pathfinder.” Among other things, DSLWP-B was designed to test low-frequency radio astronomy and space-based interferometry, and it carried Amateur Radio and educational payloads.

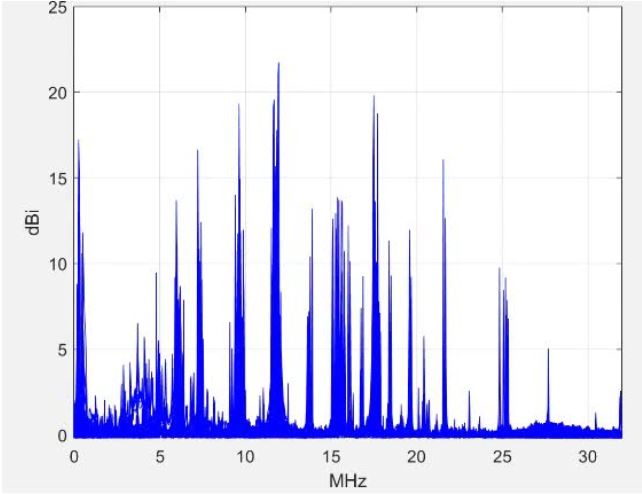

The HF spectrum mission included mapping “RF interference” from Earth in the 1 – 30 MHz range by studying its occlusion by the moon during lunar orbit. According to Chinese media accounts, this was done to “verify the technology of ultra-long wave astronomical observation and solar radiation research.” The onboard detector sensed the spectrum of RF radiation at different positions of the lunar orbit.

The Harbin Institute of Technology (BY2HIT) developed and built the DSLWP spacecraft and oversaw the mission. The microsatellite also carried optical cameras from Saudi Arabia.

In July, a contact between radio amateurs in Germany and China took place on July 1 via LO-94. The two-way exchange was between Reinhard Kuehn, DK5LA, in Sörup, Germany, and Harbin Institute of Technology club station BY2HIT (operated by Wei Mingchuan, BG2BHC), in Harbin, China, via the onboard GMSK-to-JT4G repeater — the first such contact ever made.
