The ARRL Contest Update
February 20, 2019
Editor: Brian Moran, N9ADG
Ad
IN THIS ISSUE
NEW HF OPERATORS - THINGS TO DO

Since Punxsutawney Phil didn't find his shadow this year, you'd better start planning your outdoor antenna projects now. Especially if what you are planning might require permits, approvals, or lining up construction help. Don't forget to check out resources on the ARRL website, including safety guidelines, and books including "Antenna Towers for Radio Amateurs."

Last weekend's airwaves were crowded with the CW version of the ARRL International DX Contest. There are many reports that 160 and 80 meters experienced exceptional propagation. The phone version of this contest is coming up on March 2.

You can scratch the digital contesting itch with the upcoming NAQP RTTY contest. There also eighteen college stations that will be competing against each other during this contest as part of the NA Collegiate Championship. So far, Indiana University's K9IU is leading the pack, but Georgia Tech's W4AQL is hot on their heels. They're all reporting into a live scoreboard, so you can follow the action.

CONTEST SUMMARY

21 Feb - 6 Mar 2019

Complete information for all contests follows the Conversation section

February 21

February 22

February 23

February 24

February 26

February 27

February 28

March 1

March 2

March 3

March 4

March 5

March 6

Ad
NEWS, PRESS RELEASES, AND GENERAL INTEREST

The North Carolina and South Carolina QSO Parties are celebrating FIVE years of working together in providing what amounts to an "All-the-Carolinas" QSO Party Weekend. The contest sponsors may call it "synergy" but for participants that's another word for fun! Special for this year is a drawing for real prizes for operators that make a contact with the bonus station in each of the states and submit their logs to both events. Check out the websites and rules for more details.

Being spotted during a contest by humans or by CW/RTTY skimmers can be a critical rate enhancer. To maximize your chances of being automatically spotted, your CQ messages should follow some basic rules that were outlined in N6TV's 2014 presentation on the topic:

  • Send everything at the same consistent speed
  • Never change CW speed in a message
  • Call CQ or TEST and send your call twice, for example
    • CQ N6TV N6TV
    • TEST N6TV N6TV
    • CQ N6TV N6TV TEST
  • Use proper spacing (let the computer send the CW)
  • Change your frequency slightly (but > 1KHz) to get spotted again

An awareness of how CW skimmer network works also improves your chances. According to a recent post by Pete, N4ZR to the RBN Operators group, it would be best for CW operators to stay within 70kHz of the bottom of 40, 20 and 15 meters, since the default configuration for Skimmer configuration is to decode CW for the first 70kHz of those bands. This "means that if you CQ above xxx70, you may be spotted less often because fewer nodes will be decoding above that frequency. On the other hand, if it helps to find a clear run frequency, the benefit may outweigh any loss. With 170+ nodes on the air, there should be plenty of spots for all."

Eric, K3NA, writes: Some contesters may find Palette's plug-and-play illuminated knobs, sliders and buttons useful in improving the "user interface" of their station. There are many potential applications for customized controls sitting next to the keyboard:

  • Antenna selection/rotation, eliminating that awkward reach to an antenna control box -- and the Palette control can be context-sensitive, so that it controls the antennas available on the current band
  • Important radio controls that require frequent use
  • Contesting software controls that might be better operated as a slider or knob rather than (multiple) keypresses; for example, changing CW speed

Bob, K0NR, talks about how VHF isn't just for line of sight communication in his latest blog post. He provides a nice survey of some of the propagation modes at higher frequencies, and how a dB here and a dB there all add up.

The scores are in from the first event of the North American Collegiate Championship. Eighteen schools registered for the Championship, and fifteen of those reported scores in the first of two contests that will decide the winner. Indiana University is in the lead with Georgia Tech close behind. How close? IU has ONE FEWER contact, but TWO MORE multipliers. It's reminiscent of the close multi-multi battles that occur in the W1-W3 call areas. What will happen in the second event? If you're not competing in the contest, tune into the Live Scoreboard during the contest to watch.

ARRL still has a number of unsponsored plaques available for the 2019 RTTY Roundup, 2019 ARRL DX and 2019 ARRL June VHF Contests. See the bottom of the page at http://www.arrl.org/plaques-and-awards# for more information. Plaques are $75 (shipped), payable by check to "ARRL Contest Plaques", 225 Main St, Newington, CT 06111. Be sure to contact the ARRL Contest Branch to confirm availability. (Bart, W9JJ)

WORD TO THE WISE

Key Clicks

Key Clicks are caused by the undesirable and unwanted widening of a CW signal due to energy in the signal's sidebands. Contributing factors include the shape of the keying waveform, too-short rise and fall times of the transmitted signal, or variation in the carrier oscillator frequency. Key clicks can sound like thumps or clicks to a receiver tuned with a few kHz of the transmitter frequency. Unscrupulous operators have used key clicks to their advantage by making adjacent frequencies undesirable to use, seeking to gain an unfair advantage in crowded contest conditions. This is against the rules of most contests.

SIGHTS AND SOUNDS

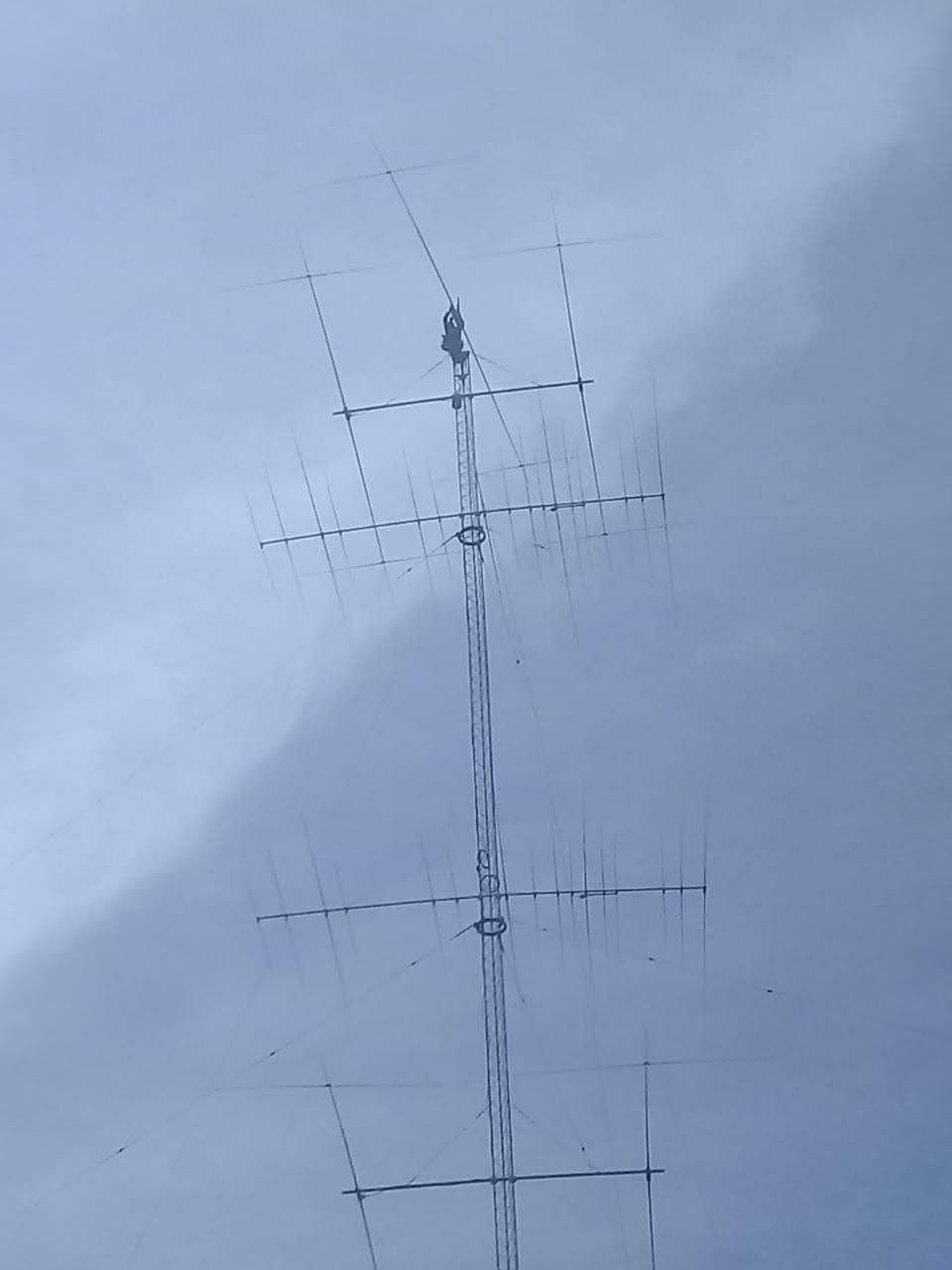

Big towers, big antennas: Hector, XE2K, posts pictures of them all of the time on his Twitter feed. Here he is at 195 feet, installing a JK Antennas JK801 for AD5A, just in time for last weekend's ARRL International DX Contest. [Credit: XE2K, Photo]

Flex Radio Systems demonstrated their new MultiFlex software at the Orlando Hamcation. Matt Youngblood discusses various operating scenarios in which the new feature could be used, which include multi-operator one-radio (MO1R) contesting.

Ad
RESULTS AND RECORDS

A number of ARRL Contests have had results posted recently:

Participation in the 10 GHz and Up Contest increased by 43% this year!

The results for the 2018 Scandinavian Activity Contest (SAC) are final and have been posted. The next running of the SAC will be September 21-22, 2019 (CW) and October 12-13, 2019 (SSB).

OPERATING TIP

Getting Spotted on Phone

Until we have SSB skimmers, you're going to have to rely on humans to spot you on phone during a contest. You'll have to rely on social capital to increase your chances. Joining a contesting club, becoming friends with more contesters, becoming a 'well known individual' in the contesting community, frequent and consistent contest participation, and in general raising the visibility of your call sign through impeccable operating habits are all ways to put yourself out there.

TECHNICAL TOPICS AND INFORMATION

The theory behind locating buried cables using electromagnetic induction is discussed in a booklet published by the SPX Corporation. Active and passive detection, frequencies to use for active detection, and cable fault detection and locating are covered in detail. (Robert Dehoney via Ward, N0AX)

Mac users in need of a voice keyer for use with dogparkSDR should check out Peter, W6OP's SDR Voice Keyer software. It takes advantage of a port of the smartSDR API to OSX. Peter also has some suggestions on his website for programs and programming libraries for those that are looking for more ways to use Flex Radio Systems gear from their Mac environment.

According to Randy, W0GK, when your PCB artwork is done and you are looking for a PC Board house, the PCBShopper website will help you choose from a list of vendors and prices after you enter the parameters for your board such as size, layers, and number of copies. (W0GK via QRP-L)

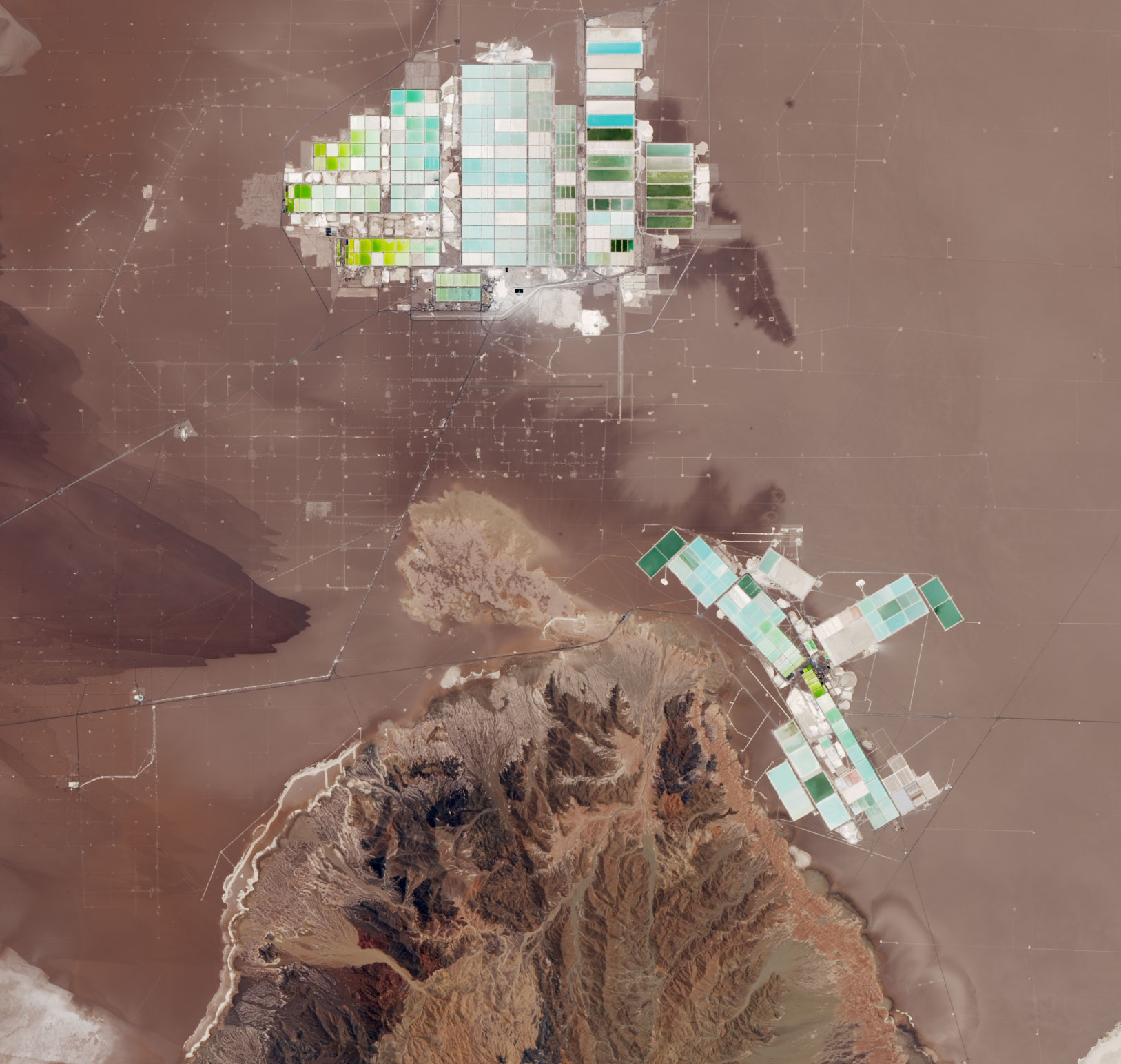

Lithium is the primary component of modern rechargeable batteries. Most of the world's lithium comes from Chile, where it's mined from below an ancient seabed. This picture taken by Landsat 8 from orbit shows extracted brine drying in surface ponds. [Credit: NASA Earth Observatory, Photo]

Liquid cooling systems are used by commercial transmitters to shed tens of kilowatts of heat. Here's a discussion of the practice which remains impractical for most Amateur applications. Less noise for amplifier cooling would be welcome, especially during high power RTTY contesting.

Mike, AB3AP, suggested some Python language functions to help with power calculations:

"For isolation and other calculations in the ham shack where Watts are used, a few python one-liners useful. When in python, copy the following:

from math import *

w2dbm = lambda x: 10 * log10(x/10) + 30
dbm2w = lambda x: 10 ** ((x-30)/10)
iso = lambda pwr_W, iso_dB: dbm2w(w2dbm(pwr_W) - iso_dB)

Using an expression like
>>> iso(1500, 60) 0.001500

tells you that 1500 W into a device with 60 dB isolation will leak 1.5 mW."(Mike, AB3AP via Elecraft email list)

Ad
CONVERSATION

Macro Focus

While setting up a new computer for the ARRL RTTY Roundup last month, I took the opportunity to examine the message macros we were using in greater detail. My logger of choice for this contest was N1MM Logger+, but other loggers have similar capabilities in their macros for controlling both the outgoing message and the logging process. The N1MM Logger+ documentation wiki has two cases of good example messages, but curiously enough the ones that are installed by default with N1MM Logger+ are different, and in my opinion not as good since they have extra filler words like "de" that aren't necessary for the contest exchange. I edited the message file to have the CQ, exchange, and TU messages that I wanted, and then went back to documentation to explore some of the more advanced macros.

One feature that I've wanted for a while but only just discovered is already built in is the ability to vary a particular macro message. A practical example would be to change my RTTY Roundup 'TU' message every now and then from "TU N9ADG CQ" to "TU N9ADG RU" just to keep things interesting. I found that capability in the VARYMSG1 macro.

The list of N1MM Logger+ macros is extensive and reflective of the rich history and broad range of contesting needs, everything from specific contest requirements to packet spot lookups to multiple radio control to multi-operator communication. The chances are that if I have a need for particular macro capability, somebody else has too, and it's already possible and included.

But here's one that doesn't exist. Maybe we'll see in the future:

{LOGTHENTWEET BRAGS:xxxx} - Log the current contact, then sends a brag message via Twitter using the specified brags file. Substitutes QSO information into the brag message using the macro message syntax.

That's all for this time. Remember to send contesting related stories, book reviews, tips, techniques, press releases, errata, schematics, club information, pictures, stories, blog links, and predictions to contest-update@arrl.org

73, Brian N9ADG

CONTESTS

21 Feb - 6 Mar 2019

An expanded, downloadable version of QST's Contest Corral is available as a PDF. Check the sponsors' website for information on operating time restrictions and other instructions.

HF CONTESTS

CWops Mini-CWT Test, Feb 20, 1300z to Feb 20, 1400z and, Feb 20, 1900z to Feb 20, 2000z and, Feb 21, 0300z to Feb 21, 0400z; CW; Bands: 160, 80, 40, 20, 15, 10m; Member: Name + Member No., non-Member: Name + (state/province/country); Logs due: February 23.

AGCW Semi-Automatic Key Evening, Feb 21, 1900z to Feb 21, 2030z; CW; Bands: 80m Only; RST + Serial No. + "/" + 2-digit year first used a bug; Logs due: March 15.

NCCC RTTY Sprint, Feb 22, 0145z to Feb 22, 0215z; RTTY; Bands: (see rules); Serial No. + Name + QTH; Logs due: February 24.

QRP Fox Hunt, Feb 22, 0200z to Feb 22, 0330z; CW; Bands: 80m Only; RST + (state/province/country) + name + power output; Logs due: February 28.

NCCC Sprint Ladder, Feb 22, 0230z to Feb 22, 0300z; CW; Bands: 160, 80, 40, 20, 15, 10, 6m; Serial No. + Name + QTH; Logs due: February 24.

CQ 160-Meter Contest, SSB, Feb 22, 2200z to Feb 24, 2200z; SSB; Bands: 160m Only; W/VE: RS + (state/province), DX: RS + CQ Zone; Logs due: March 1.

REF Contest, SSB, Feb 23, 0600z to Feb 24, 1800z; SSB; Bands: 80, 40, 20, 15, 10m; French: RS + Department/Prefix, non-French: RS + Serial No.; Logs due: March 4.

UBA DX Contest, CW, Feb 23, 1300z to Feb 24, 1300z; CW; Bands: 80, 40, 20, 15, 10m; ON: RST + Serial No. + province, non-ON: RST + Serial No.; Logs due: March 10.

South Carolina QSO Party, Feb 23, 1500z to Feb 24, 0159z; CW, Digital, Phone; Bands: 160, 80, 40, 20, 15, 10, 6m; SC: RS(T) + County, non-SC: RS(T) + (state/province/"DX"); Logs due: March 25.

NA Collegiate Championship, RTTY, Feb 23, 1800z to Feb 24, 0559z; RTTY; Bands: 80, 40, 20, 15, 10m; NA: Name + (state/DC/province/country), non-NA: Name; Logs due: March 1.

North American QSO Party, RTTY, Feb 23, 1800z to Feb 24, 0559z; RTTY; Bands: 80, 40, 20, 15, 10m; NA: Name + (state/DC/province/country), non-NA: Name; Logs due: March 1.

High Speed Club CW Contest, Feb 24, 0900z to Feb 24, 1100z and, Feb 24, 1500z to Feb 24, 1700z; CW; Bands: 80, 40, 20, 15, 10m; Members: RST + HSC No., non-Members: RST + "NM"; Logs due: March 16.

Classic Exchange, Phone, Feb 24, 1300z to Feb 25, 0700z and, Feb 26, 1300z to Feb 27, 0700z; AM, SSB, FM; Bands: 160, 80, 40, 20, 15, 10, 6, 2m; Name + RS + (state/province/country) + rcvr/xmtr manuf/model; Logs due: April 2.

SARL Digital Contest, Feb 24, 1400z to Feb 24, 1700z; PSK, RTTY; Bands: 80, 40, 20m; RST + QSO No.; Logs due: March 4.

North Carolina QSO Party, Feb 24, 1500z to Feb 25, 0059z; CW, Phone, Digital; Bands: 80, 40, 20, 15, 10, 6, 2m; NC: County, non-NC: (state/province/country); Logs due: March 11.

SKCC Sprint, Feb 27, 0000z to Feb 27, 0200z; CW; Bands: 160, 80, 40, 20, 15, 10m; RST + (state/province/country) + Name + (SKCC No./power); Logs due: March 1.

QRP Fox Hunt, Feb 27, 0200z to Feb 27, 0330z; CW; Bands: 80m Only; RST + (state/province/country) + name + power output; Logs due: February 28.

Phone Fray, Feb 27, 0230z to Feb 27, 0300z; SSB; Bands: 160, 80, 40, 20, 15m; NA: Name + (state/province/country), non-NA: Name; Logs due: March 1.

CWops Mini-CWT Test, Feb 27, 1300z to Feb 27, 1400z and, Feb 27, 1900z to Feb 27, 2000z and, Feb 28, 0300z to Feb 28, 0400z; CW; Bands: 160, 80, 40, 20, 15, 10m; Member: Name + Member No., non-Member: Name + (state/province/country); Logs due: March 2.

UKEICC 80m Contest, Feb 27, 2000z to Feb 27, 2100z; CW; Bands: 80m Only; 4-Character grid square; Logs due: February 27.

RSGB 80m Club Championship, CW, Feb 28, 2000z to Feb 28, 2130z; CW; Bands: 80m Only; RST + Serial No.; Logs due: March 1.

NCCC RTTY Sprint, Mar 1, 0145z to Mar 1, 0215z; RTTY; Bands: (see rules); Serial No. + Name + QTH; Logs due: February 24.

QRP Fox Hunt, Mar 1, 0200z to Mar 1, 0330z; CW; Bands: 80m Only; RST + (state/province/country) + name + power output; Logs due: February 21.

NCCC Sprint Ladder, Mar 1, 0230z to Mar 1, 0300z; CW; Bands: 160, 80, 40, 20, 15, 10, 6m; Serial No. + Name + QTH; Logs due: February 24.

Novice Rig Roundup, Mar 2, 0000z to Mar 10, 2359z; CW; Bands: 80, 40, 15, 10, 2m; RST + QTH + Name + Class; Logs due: April 9.

ARRL International DX Contest, SSB, Mar 2, 0000z to Mar 4, 0000z; SSB; Bands: 160, 80, 40, 20, 15, 10m; W/VE: RS + (state/province), non-W/VE: RS + power; Logs due: March 10.

Wake-Up! QRP Sprint, Mar 2, 0600z to Mar 2, 0629z and, Mar 2, 0630z to Mar 2, 0659z and, Mar 2, 0700z to Mar 2, 0729z and, Mar 2, 0730z to Mar 2, 0800z; CW; Bands: 40, 20m; RST + Serial No. + suffix of previous QSO ("QRP" for 1st QSO); Logs due: March 9.

Open Ukraine RTTY Championship, Mar 2, 1800z to Mar 2, 2059z (Low Band) and, Mar 2, 2100z to Mar 2, 2359z (Low Band) and, Mar 3, 0800z to Mar 3, 1059z (High Band) and, Mar 3, 1100z to Mar 3, 1359z (High Band); RTTY; Bands: 160, 80, 40, 20, 15, 10m; 2-letter regional abbrev. (state/province/canton, etc.) + Serial No.(restart serial no. for high band); Logs due: March 18.

UBA Spring Contest, CW, Mar 3, 0700z to Mar 3, 1100z; CW; Bands: 80m Only; ON: RST + Serial No. + UBA Section, non-ON: RST + Serial No.; Logs due: March 17.

SARL Hamnet 40m Simulated Emergency Contest, Mar 3, 1200z to Mar 3, 1400z; SSB; Bands: 40m Only; Class A: RS + Serial No. (starting with 201), Class B: RS + Serial No. (starting with 401), Class C: RS + Serial No. (starting with 601), Class D: RS + Serial No. (starting with 801), Non-participants: RS + Serial No. (starting with 001); Logs due: March 10.

NSARA Contest, Mar 3, 1200z to Mar 3, 1600z and, Mar 3, 1800z to Mar 3, 2200z; CW, SSB, Digital; Bands: 80m Only; Nova Scotia: RS(T) + county, non-NS: RS(T); Logs due: April 2.

RSGB 80m Club Championship, Data, Mar 4, 2000z to Mar 4, 2130z; RTTY, PSK; Bands: 80m Only; RST + Serial No.; Logs due: March 5.

ARS Spartan Sprint, Mar 5, 0200z to Mar 5, 0400z; CW; Bands: 80, 40, 20, 15, 10m; RST + (state/province/country) + Power; Logs due: March 7.

AGCW YL-CW Party, Mar 5, 1900z to Mar 5, 2100z; CW; Bands: 80m Only; YL: RST + Serial No. + "/YL/" + name, OM: RST + Serial No. + "/" + name; Logs due: March 31.

QRP Fox Hunt, Mar 6, 0200z to Mar 6, 0330z; CW; Bands: 80m Only; RST + (state/province/country) + name + power output; Logs due: February 21.

Phone Fray, Mar 6, 0230z to Mar 6, 0300z; SSB; Bands: 160, 80, 40, 20, 15m; NA: Name + (state/province/country), non-NA: Name; Logs due: February 22.

CWops Mini-CWT Test, Mar 6, 1300z to Mar 6, 1400z and, Mar 6, 1900z to Mar 6, 2000z and, Mar 7, 0300z to Mar 7, 0400z; CW; Bands: 160, 80, 40, 20, 15, 10m; Member: Name + Member No., non-Member: Name + (state/province/country); Logs due: February 23.

UKEICC 80m Contest, Mar 6, 2000z to Mar 6, 2100z; CW; Bands: 80m Only; 4-Character grid square; Logs due: February 27.

VHF+ CONTESTS

See NCCC Sprint Ladder, South Carolina QSO Party, North Carolina QSO Party, above.

LOG DUE DATES

21 Feb - 6 Mar 2019

February 21, 2019

February 22, 2019

February 23, 2019

February 24, 2019

February 27, 2019

February 28, 2019

March 1, 2019

March 2, 2019

March 3, 2019

March 4, 2019

March 5, 2019
